3-Bay Credenza

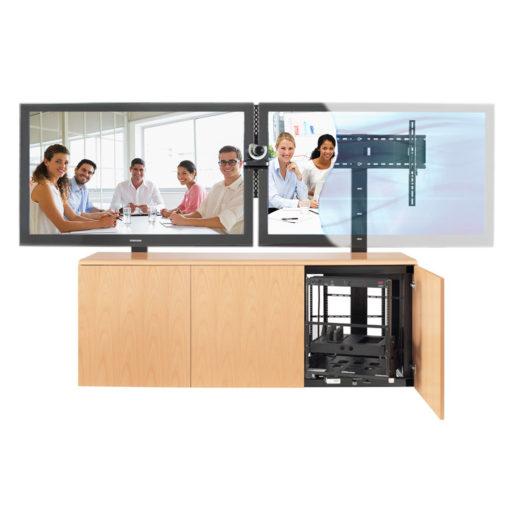

Our fully customizable 3-Bay Credenza can house all your audiovisual equipment and offers a unique integrated screen mounting system that eliminates wall-mounted displays. Our credenza comes with a sliding 12RU rotating equipment rack on one end and three bays with removable/adjustable shelves, or enough room for a mini-fridge.

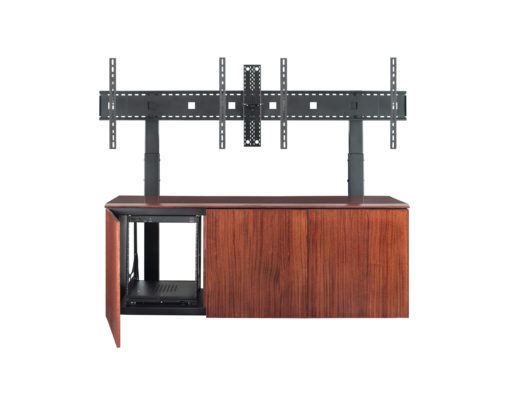

Credenza uprights are available as an accessory to bring additional height for larger displays.

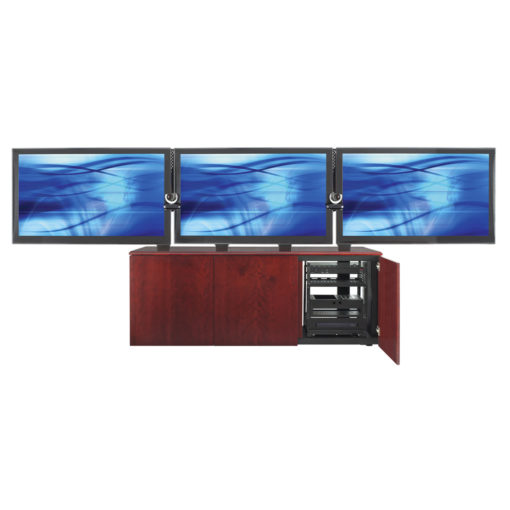

The 3-Bay Credenza can support a single (98”), dual (82”), or dual extra large (86″) displays.

In addition, the 2-Bay Credenza offers the same quality features with two bays and 12RU of rack space.

4- to 6-bay configurations are available made-to-order. Contact your Avteq sales rep for pricing, custom sizes and options.

Certifications:

TAA-Compliant-Label Made in USA - LabelMade in Texas-Label



SKU: CRED3L-S | CRED3V-S | CRED3L-D | CRED3V-D | CRED3L-DX | CRED3V-DX Categories: , , Tags: , , ,
  • Supports single display up to 98”*, dual displays up to 82”, and dual extra large displays up to 86″
  • 12RU sliding, rotating rack
  • Universal display mount
  • Open back for ventilation
  • 6-port rack-mounted surge protector
  • Choice of laminate or veneer finish
  • Available as steel frame only with accompanying CAD drawings for your local millworker to match existing woodwork
  • TAA-Compliant – meets the needs of U.S. Government projects

* Contact Avteq for applications above 90″

2-BAY CREDENZA CABINET RACK UNITS RACK DISPLAY SIZE PART NUMBER
30H x 52.6W x 25.4D inches 22.5H x 24W x 22D inches 12RU 17″D Single: 45-98 inches CRED2L-S | CRED2V-S
Dual: 45-82 inches CRED2L-D | CRED2V-D
3-BAY CREDENZA
30H x 79W x 25.4D inches Single: 45-98 inches CRED3L-S | CRED3V-S
Dual: 45-82 inches CRED3L-D | CRED3V-D
Dual Xtra Large: 86 inch CRED3L-DX | CRED3V-DX
5-BAY CREDENZA
30H x 132W x 25.4D inches Single: 45-98 inches CRED5L-S | CRED5V-S
Dual: 45-82 inches CRED5L-D | CRED5V-D
Dual Xtra Large: 86 inch CRED5L-DX | CRED5V-DX

The 3-Bay Credenza is available in either veneer (V) or laminate (L) with your choice of wood finish.

Sample Laminate Finishes

Sample Laminate Finishes

For a complete library of laminate and custom veneer finishes, click here.

2-5 Bay Credenzas Product Sheet

3-Bay Credenza Dimensional Drawing

Packaging/Shipping Information Number of Items/Pallet Package Dimensions Weight
CRED3L-S | CRED3V-S 3 88″L X 37″W x 44″H 510 lbs.

ACCESSORY DETAILS PART NUMBER
Credenza Extended Uprights Brings additional height for larger displays CRED-EXT-UPRIGHTS
3-Bay Credenza Cover Panel Custom wood panel to hide uprights on 3-bay credenza. Choice of Laminate CRED3-PP-L
Credenza Back Bay Covers Set of three metal bay covers that secure to the back of the 3-bay credenza CRED3-BC
