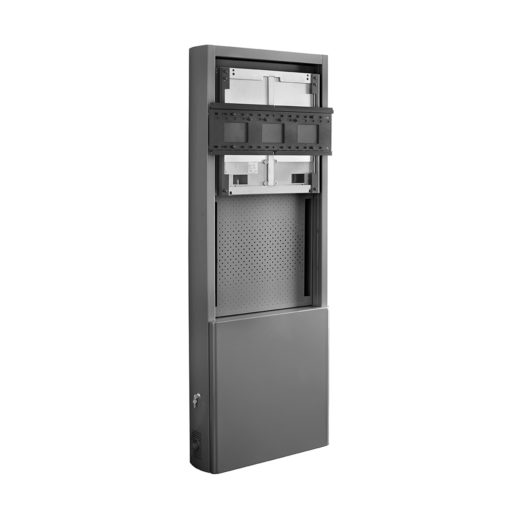

DynamiQ Height Adjustable Wall Stand

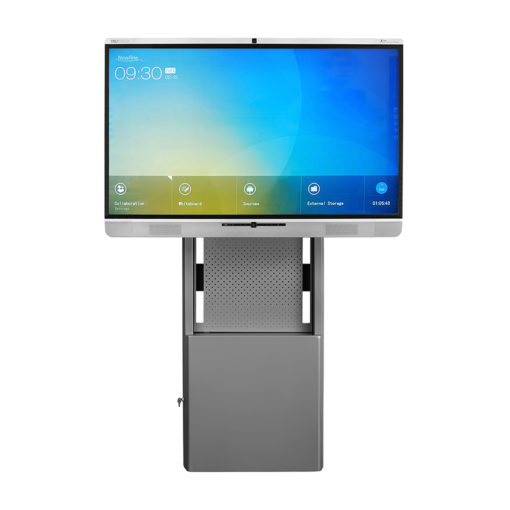

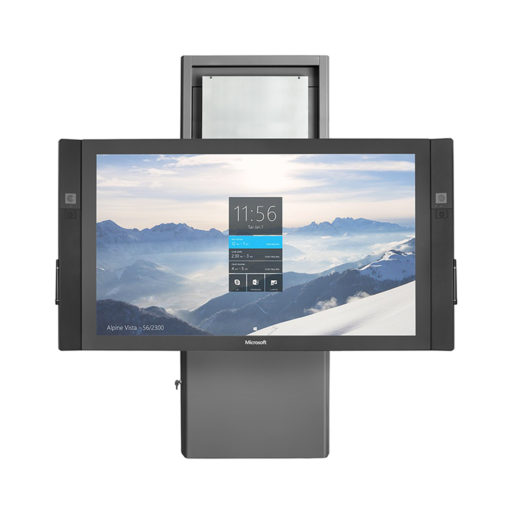

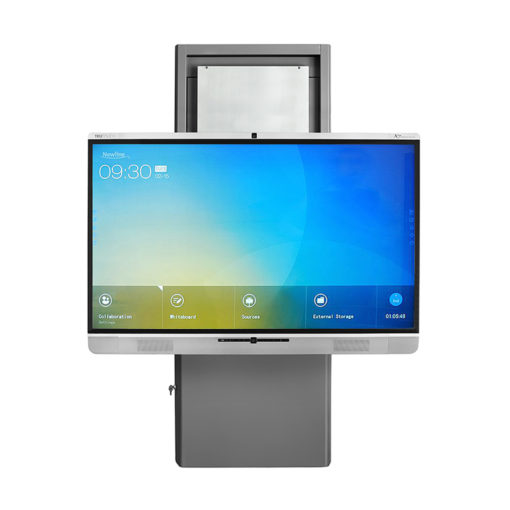

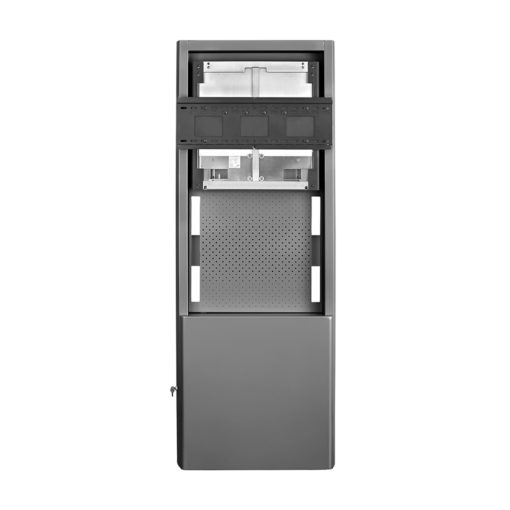

The height adjustable DynamiQ™ Wall Stand is the perfect solution for interactive displays in the classroom, library, training center or meeting room. The DynamiQ Wall Stand supports displays up to 209 lbs including the Microsoft Surface Hub 2S.  The easy glide mount uses spring-weighted technology, which allows the display to move up or down with a simple touch of the hand.

The DynamiQ Wall Stand comes in black for frame and panel color. Panels may be custom skinned in veneer or laminate to match any environment. Cabling pathways throughout with 3RU of vertical rack space. The DynamiQ Wall Stand is ADA compliant and ideal for large displays. The stand must be anchored to the wall.





  • Spring-weighted, easy glide mount supports single display up to 198 lbs (net display weight plus 11.4 lbs for VESA mount)

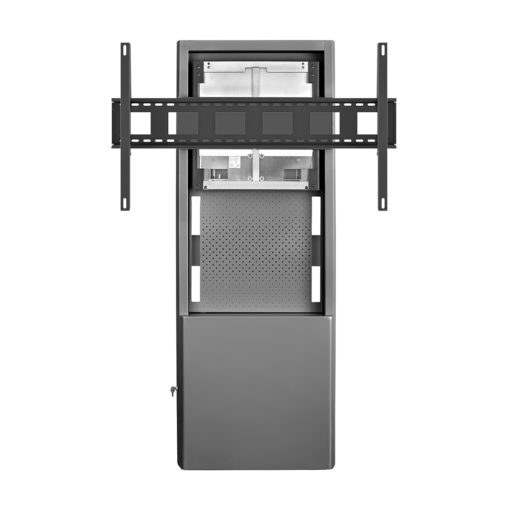

  • Optional mount supports the Cisco Webex Board 55 and 70
  • ADA compliant
  • Wall anchoring required

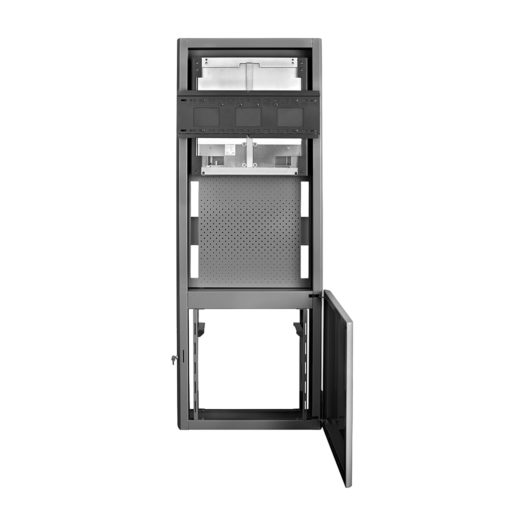

  • 3RU vertical rack space
  • Universal display mount
  • 6-port surge protector
  • Cable management features
  • Ventilation requirements based on application
  • Black powder coat finish. Custom colors or laminate finish optional.
  • 100% solid steel construction
  • TAA-Compliant – meets the needs of U.S. Government projects









NOTE: For the total weight, add the net display weight plus 11.4 lbs. for the VESA mount.

DIMENSIONS LOAD CAPACITY DISPLAY SIZE PART NUMBER
79″H x 29″W x 9″D 44 – 83.6 lbs Based on weight D-WMS-BB40
79″H x 29″W x 9″D 83.6 – 145.2 lbs Based on weight D-WMS-BB70
79″H x 29″W x 9″D 145.2 – 198 lbs Based on weight D-WMS-BB90
79″H x 48″W x 9″D 55″ Cisco Webex Board D-WMS-CSB55
79″H x 62″W x 9″D 70″ Cisco Webex Board D-WMS-CSB70

DynamiQ Wall Stand Product Sheet

Cisco Webex Board Solutions

Packaging/Shipping Information Number of Items/Pallet Package Dimensions Weight
D-WMS-BB40/70/90 1 83″W x 48″L x 17″H 287 lbs.
D-WMS-CSB55 3 83″W x 48″L x 15″H 220 lbs.
D-WMS-CSB70 3 83″W x 48″L x 15″H 347 lbs.
