DynamiQ BalanceBox 400 Height Adjustable Display Wall Mount

The DynamiQ™ BalanceBox 400 height adjustable wall mount is the perfect solution for interactive touch panels in the classroom and other collaborative spaces.  The mount is compatible with most interactive panels and supports VESA patterns from 200×200 up to 800×600.

The DynamiQ BalanceBox 400 wall mount uses spring technology to support the display and provides easy glide vertical movement with a slight manual touch.  The height-adjustable mount supports 15.75″ of vertical movement and supports displays from 50 to 209 lbs.

Certifications:

TAA Compliant - Label UL Recognized Canada & US - Label



  • Height-adjustable wall mount
  • Supports a single display up to 209 lbs
  • Supports Cisco Board 55/Pro 55/70/Pro 75
  • Vertical movement up to 15.75″

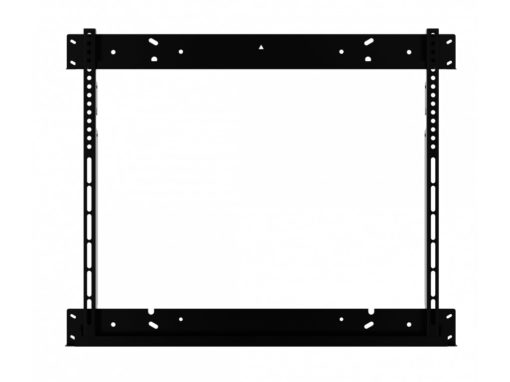

  • VESA adapter included (200×200 up to 800×600)
  • Spring weighted technology
  • Easy movement with only a light hand touch
  • No electricity needed
  • Black powder coat finish
  • UL listed and CE (ISO 60950)

Product Overview

  • DynamiQ BalanceBox 400 Mount (AVT-BB400-40/AVT-BB400-70/AVT-BB400-90) + VESA (AVT-481A70), BalanceBox p/n: 480A13/480A12/480A14 + 481a70

DIMENSIONSVERTICAL ADJUSTSINGLE DISPLAY SIZELOAD CAPACITYPART NUMBER
23.6″H x 22″W x 2.9″D 15.75 inches 42-86 inches 50.7 – 94.7 lbs AVT-BB400-40
90.4 – 152 lbs AVT-BB400-70
145.5 – 209 lbs AVT-BB400-90
Cisco Board 55 and Pro 55 AVT-BB-CSB55
Cisco Board 70 and Pro 75 AVT-BB-CSB70

DynamiQ BalanceBox 400 Mount Product Sheet

DynamiQ BalanceBox 400 Mount Dimensional Drawing

Purchasing Guide for Manual DynamiQ BalanceBox Mounts

Part Number Number of Items/Pallet Package Dimensions Weight
AVT-BB400-40
AVT-BB400-70
AVT-BB400-90
1 of 2 24″W X 25″L x 2″H 52 lbs.
Standard VESA Mount 2 of 2 35″W X 6″L x 2″H 10 lbs.
AVT-BB-CSB55 2 of 2 50″W X 10″L x 2″H 20 lbs.
AVT-BB-CSB70 2 of 2 63″W X 14″L x 2″H 41 lbs.

ACCESSORY DETAILS PART NUMBER
Floor Support Optimal weight distribution to the floor, perfect for non-supporting walls AVT-481A43001

Over the Whiteboard Floor Support For use with or without DynamiQ 400 mount AVT-481A61001
