DynamiQ BalanceBox mTilt Motorized Height Adjustable Cart

The DynamiQ BalanceBox mTilt is height adjustable tilting mobile cart with motorized height adjustable capabilities. The double-column design provides the stability needed to work with large interactive touchscreens up to 75”.

The wired remote controller may be placed at a convenient and easy-to-reach location, allowing the user to adjust the height of the screen safely and quietly. The 26” travel will guarantee full screen access for all users, while the 90-degree tilt feature will allow multiple users to access the screen at the same time. The motorized stand has an anti-collision feature to prevent accidental pinching, when the system is moving and senses an obstruction it will stop and retreat. In the DynamiQ BalanceBox mTilt’s lowest position, the monitor allows easy access for users in wheelchairs.

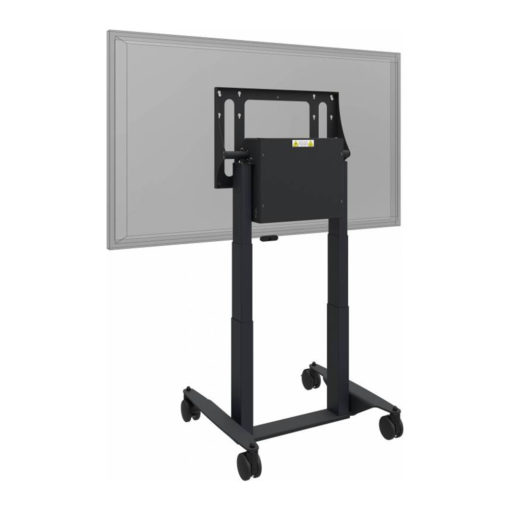

A lockbox is located on the back of the VESA mounting box, which safely stores the electric controls. The lockbox also may be used for a mini PC or other small equipment.

Certifications:

TAA-Compliant-Label UL Certified - Label



  • Fast motorized height adjustability at 1.5″ per second travel speed
  • Wired remote control, no battery required
  • Lock-box for safe electronic control storage
  • 90-degree tilt feature
  • 26″ travel allows full access for all users
  • Wheelchair user accessibility
  • Supports a single display up to 209 lbs.
  • UL listed and CE (UL962)

Product Overview

  • DynamiQ BalanceBox mTilt Cart (AVT-487A03) + VESA (AVT-481A70), BalanceBox p/n: 487A03 + 481A70

DIMENSIONS VERTICAL ADJUST LOAD CAPACITY PART NUMBER
28″H x 30.6″W x 28.5″L 26.2” to 52.2” 209lbs (up to 75”) AVT-487A03

DynamiQ BalanceBox mTilt Product Sheet

DynamiQ BalanceBox mTilt Dimensional Drawing

Packaging/Shipping Information Number of Items/Pallet Package Dimensions Weight
AVT-487A03 1 46″W x 32″L x 22″H 186 lbs.
